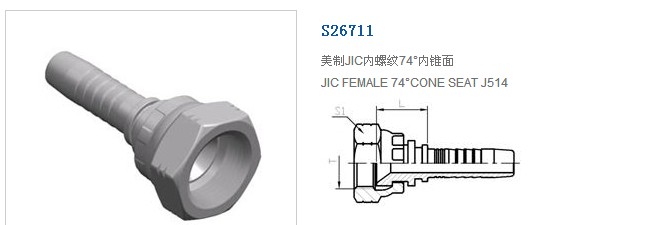

美制JIC螺纹74°密封

发布日期:2013-3-22 15:49:03      来源:杭州派力威流体系统科技有限公司

产品技术参数:

代  号 螺纹 T            软 管 HOSE BORE   尺寸  DIMENSIONS
PART NO. THREAD T 公称内径 DN 标号 DASH L S1
S26711-04-04 7/16"X20 6 04 15 14
S26711-05-04 1/2"X20 6 04 15.5 17
S26711-05-05 1/2"X20 8 05 15.5 17
S26711-06-04T 9/16"X18 6 04 15.5 19
S26711-06-05 9/16"X18 8 05 15.5 19
S26711-06-06 9/16"X18 10 06 15.5 19
S26711-07-06 5/8"X18 10 06 16.5 22
S26711-08-06T 3/4"X16 10 06 18 24
S26711-08-08 3/4"X16 13 08 18 24
S26711-08-10 3/4"X16 16 10 19 24
S26711-10-08T 7/8"X14 13 08 19 27
S26711-10-10 7/8"X14 16 10 20 27
S26711-10-12 7/8"X14 19 12 20 27
S26711-12-08T 1.1/16"X12 12 08 20 32
S26711-12-10T 1.1/16"X12 16 10 21.5 32
S26711-12-12 1.1/16"X12 19 12 21.5 32
S26711-14-12T 1.3/16"X12 19 12 21.5 36
S26711-16-12T 1.5/16"X12 19 12 22 41
S26711-16-16 1.5/16"X12 25 16 23 41
S26711-20-16T 1.5/8"X12 25 16 25 50
S26711-20-20 1.5/8"X12 32 20 26 50
S26711-24-20T 1.7/8"X12 32 20 26 55
S26711-24-24 1.7/8"X12 38 24 26.5 55
S26711-32-24T 2.1/2"X12 38 24 26.5 75
S26711-32-32 2.1/2"X12 51 32 27 75
