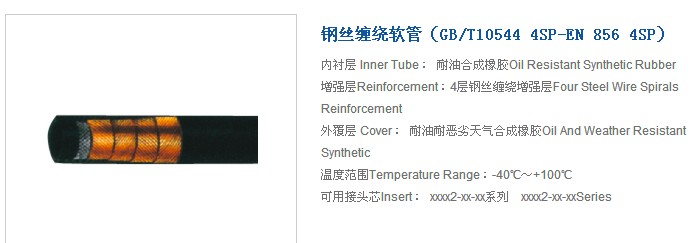

钢丝缠绕软管
发布日期：2013-3-22 14:26:28 来源：杭州派力威流体系统科技有限公司
.jpg)
产品技术参数：
| 软管代号 | 公称内径 | 软管尺寸 | 软管内径 | 软管外径 | 最大工作压力 | 最小爆破压力 | 最小弯曲半径 | 配用套筒 | |
|---|---|---|---|---|---|---|---|---|---|
| PART NO. | mm | DASH | Inch | mm | mm | MPa | MPa | mm | |
| 4SP04 | 6 | -04 | 1/4" | 6.4 | 17.9 | 45.0 | 180.0 | 150 | S00400-04 |
| 4SP06 | 10 | -06 | 3/8" | 9.5 | 21.4 | 44.5 | 178.0 | 180 | S00400-06 |
| 4SP08 | 13 | -08 | 1/2" | 12.7 | 24.6 | 41.5 | 166.0 | 230 | S00400-08 |
| 4SP10 | 16 | -10 | 5/8" | 15.9 | 28.2 | 35.0 | 140.0 | 250 | S00400-10 |
| 4SP12 | 19 | -12 | 3/4" | 19 | 32.2 | 35.0 | 140.0 | 300 | S00400-12 |
| 4SP16 | 25 | -16 | 1" | 25.4 | 39.7 | 28.0 | 112.0 | 340 | S00400-16 |
| 4SP20 | 32 | -20 | 1.1/4" | 31.8 | 50.8 | 21.0 | 84.0 | 460 | S00400-20 |
| 4SP24 | 38 | -24 | 1.1/2" | 38.1 | 57.2 | 18.5 | 74.0 | 560 | S00400-24 |
| 4SP32 | 51 | -32 | 2" | 50.8 | 69.8 | 16.5 | 66.0 | 660 | S00400-32 |
