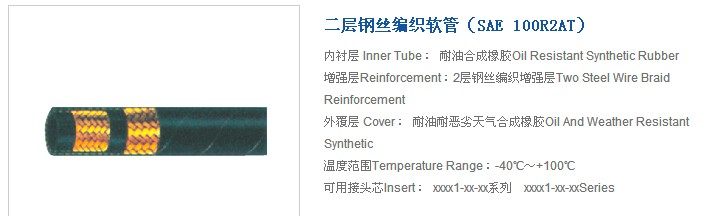

二层钢丝编织软管
发布日期：2013-3-22 14:22:29 来源：杭州派力威流体系统科技有限公司
.jpg)
产品技术参数：
| 软管代号 | 公称内径 | 软管尺寸 | 软管内径 | 软管外径 | 最大工作压力 | 最小爆破压力 | 最小弯曲半径 | 配用套筒 | |
|---|---|---|---|---|---|---|---|---|---|
| PART NO. | mm | DASH | Inch | mm | mm | MPa | MPa | mm | |
| 2T04 | 6 | -04 | 1/4" | 6.4 | 15.0 | 34.5 | 137.9 | 102 | S03310-04 |
| 2T05 | 8 | -05 | 5/16" | 7.9 | 16.7 | 29.3 | 117.2 | 114 | S03310-05 |
| 2T06 | 10 | -06 | 3/8" | 9.5 | 19.1 | 27.6 | 110.3 | 127 | S03310-06 |
| 2T08 | 13 | -08 | 1/2" | 12.7 | 22.2 | 24.1 | 96.5 | 178 | S03310-08 |
| 2T10 | 16 | -10 | 5/8" | 15.9 | 25.4 | 19.0 | 75.8 | 203 | S03310-10 |
| 2T12 | 19 | -12 | 3/4" | 19 | 29.3 | 15.5 | 62.0 | 241 | S03310-12 |
| 2T16 | 25 | -16 | 1" | 25.4 | 38.1 | 13.8 | 55.2 | 305 | S03310-16 |
| 2T20 | 32 | -20 | 1.1/4" | 31.8 | 48.3 | 11.2 | 44.8 | 419 | S03310-20 |
| 2T24 | 38 | -24 | 1.1/2" | 38.1 | 54.6 | 8.6 | 34.5 | 508 | S03310-24 |
| 2T32 | 51 | -32 | 2" | 50.8 | 67.4 | 7.8 | 31.0 | 635 | S03310-32 |
