法兰夹
发布日期：2013-3-20 15:37:55 来源：杭州派力威流体系统科技有限公司

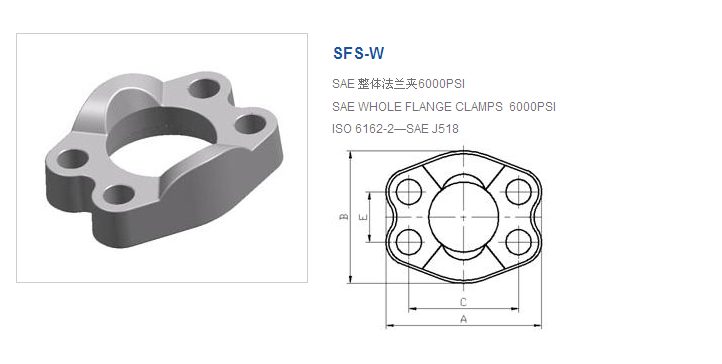

产品技术参数：
|
代号
|
法兰型号
|
尺寸 DIMENSIONS
|
配螺栓
|
压力等级Mpa
|
|||
|
PART NO.
|
FLANGE SIZE
|
A
|
B
|
C
|
E
|
BOLT
|
|
|
SFS-08W
|
1/2＂
|
56.4
|
47.2
|
40.5
|
18.2
|
M8X30
|
42
|
|
SFS-08WUN
|
1/2＂
|
56.4
|
47.2
|
40.5
|
18.2
|
5/16＂-18X1.1/2＂
|
|
|
SFS-12W
|
3/4＂
|
71.4
|
60
|
50.8
|
23.8
|
M10X35
|
|
|
SFS-12WUN
|
3/4＂
|
71.4
|
60
|
50.8
|
23.8
|
3/8＂-16X1.1/2＂
|
|
|
SFS-16W
|
1＂
|
81.2
|
69.6
|
57.2
|
27.8
|
M12X45
|
|
|
SFS-16WUN
|
1＂
|
81.2
|
69.6
|
57.2
|
27.8
|
7/16＂-14X1.3/4＂
|
|
|
SFS-20W
|
1.1/4＂
|
95.2
|
77.2
|
66.7
|
31.8
|
M12X45
|
|
|
SFS-20WUN
|
1.1/4＂
|
95.2
|
77.2
|
66.7
|
31.8
|
1/2＂-13X1.3/4＂
|
|
|
SFS-24W
|
1.1/2＂
|
112.8
|
954
|
79.4
|
36.6
|
M16X55
|
|
|
SFS-24WUN
|
1.1/2＂
|
112.8
|
95
|
79.4
|
36.6
|
5/8＂-11X2.1/4＂
|
|
|
SFS-32W
|
2＂
|
133.4
|
113.8
|
96.8
|
44.4
|
M20X70
|
|
|
SFS-32WUN
|
2＂
|
133.4
|
113.8
|
96.8
|
44.4
|
3/4＂-10X2.3/4＂
|
|
